G4 EFFICIENT GAS INSERT

G4 EFFICIENT GAS INSERT

The G4 gas insert is designed to fit existing large fireplace openings without sacrificing presence or performance. The result is an impressive flame viewing area highlighted by a proportional surround that compliments, not overpowers.

Increase your overall home efficiency while providing ease-of-use heat controls and effective warmth distribution. Ceramic and stainless steel burner kit options are engineered for performance and efficiency.

Valor inserts provide peak performance and improved operating efficiencies—saving you energy with AutoFire™.

Model Max Input Min Input Max Output Energuide
780MN 28,000 14,000 20,933 70.00%
780MP 28,000 14,000 20,933 70.00%
785KLN 28,000 17,500 20,773 70.00%
785KLP 28,000 13,000 20,773 70.00%
785YN 28,000 15,000 20,664 70.02%
785YP 26,000 13,000 19,344 70.05%
Gas Type Natural Gas (NG) or Propane (LPG)
Remote Control Quick Guide | Manual
Viewing Area 28″ w x 18″ h = 504″²
Min. Cavity Dimensions 33 ¼” w x 23 ¼” h x 15 ½” d
Wall Control 1265WSK
Additional Features No power no problem & safety screen.
ValorStat Max ValorStat Max Remote Manual and Quick Guide
Fuel Beds

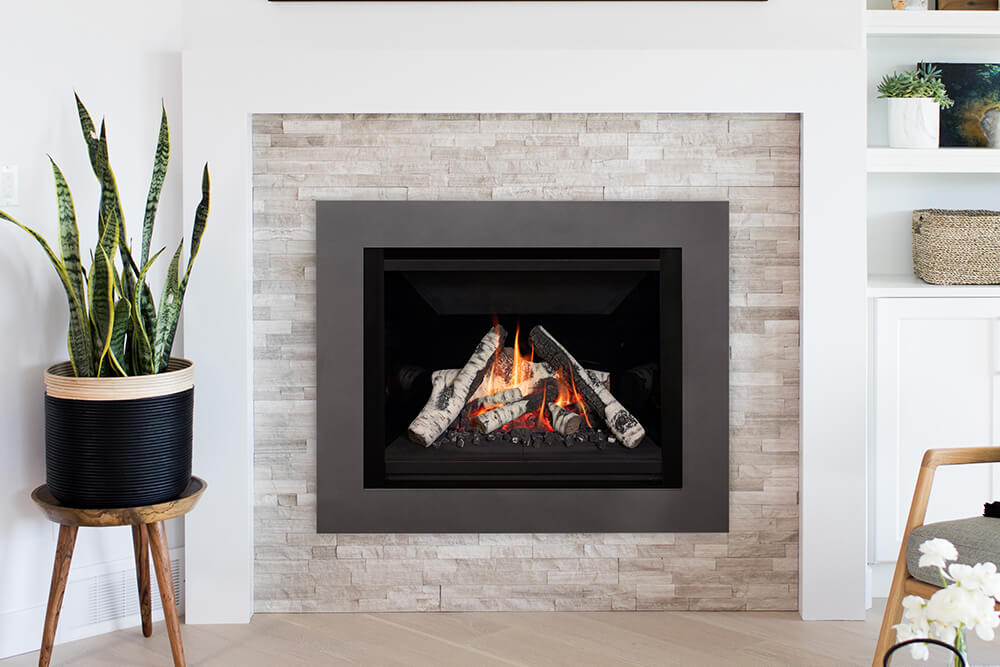

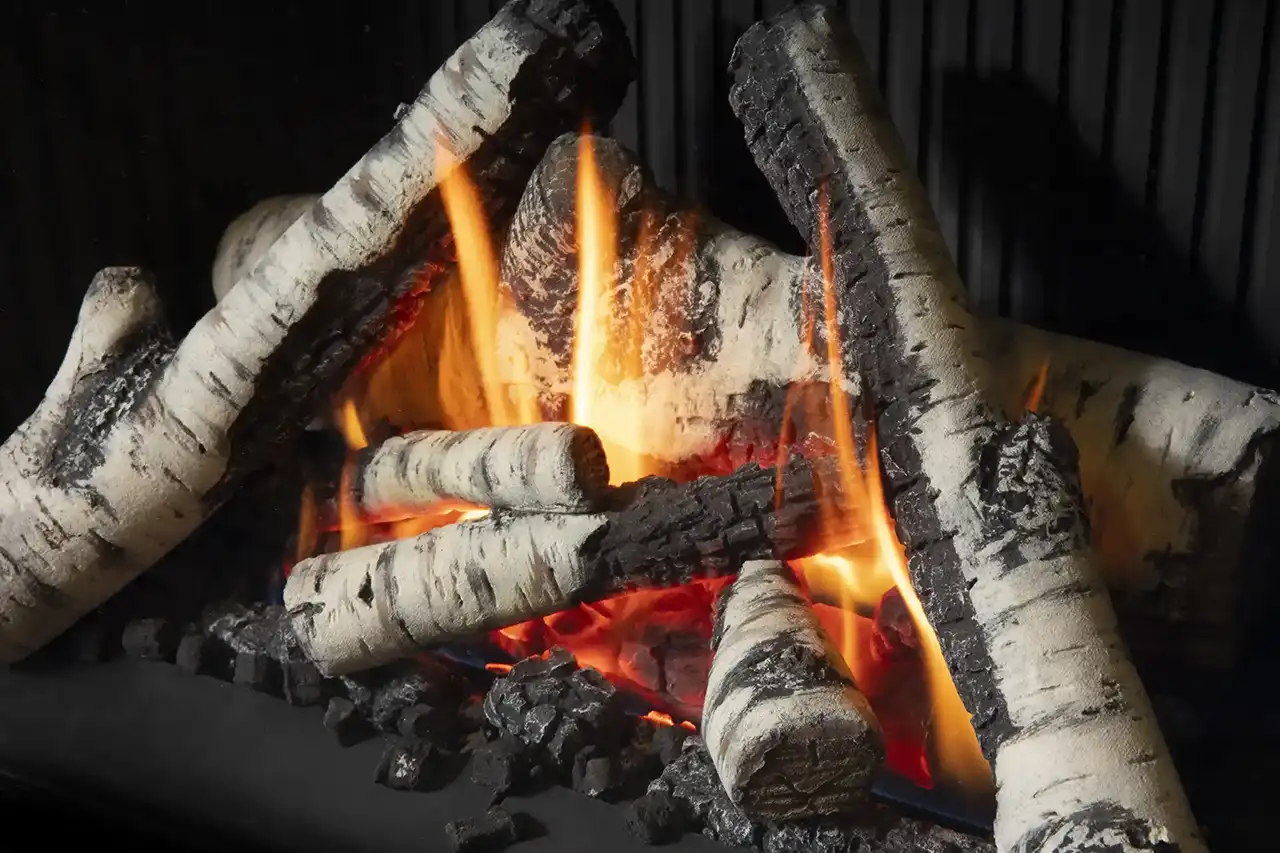

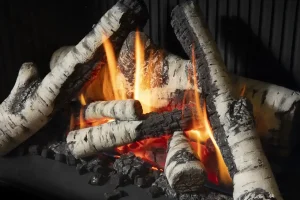

IOOOBLK I Birch Logs

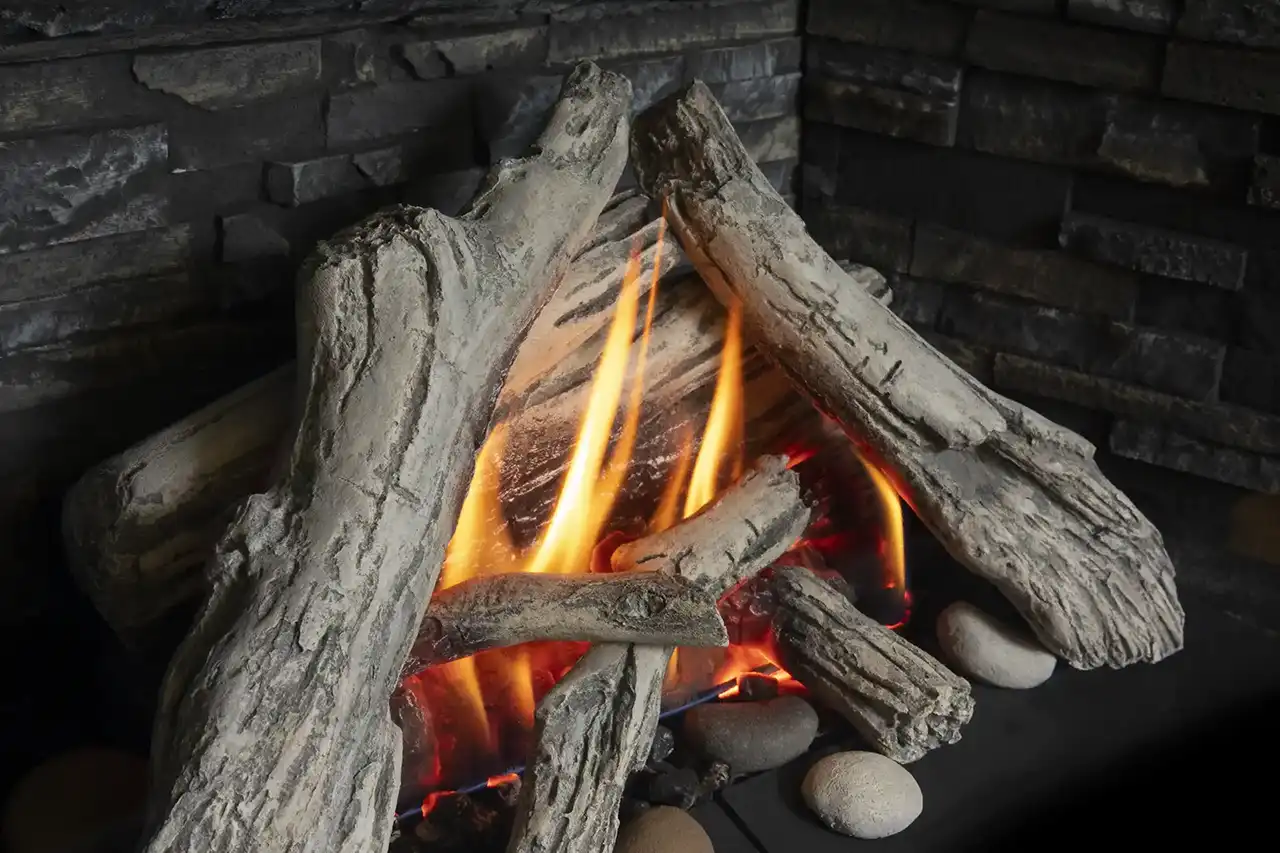

IOOODWK I Driftwood

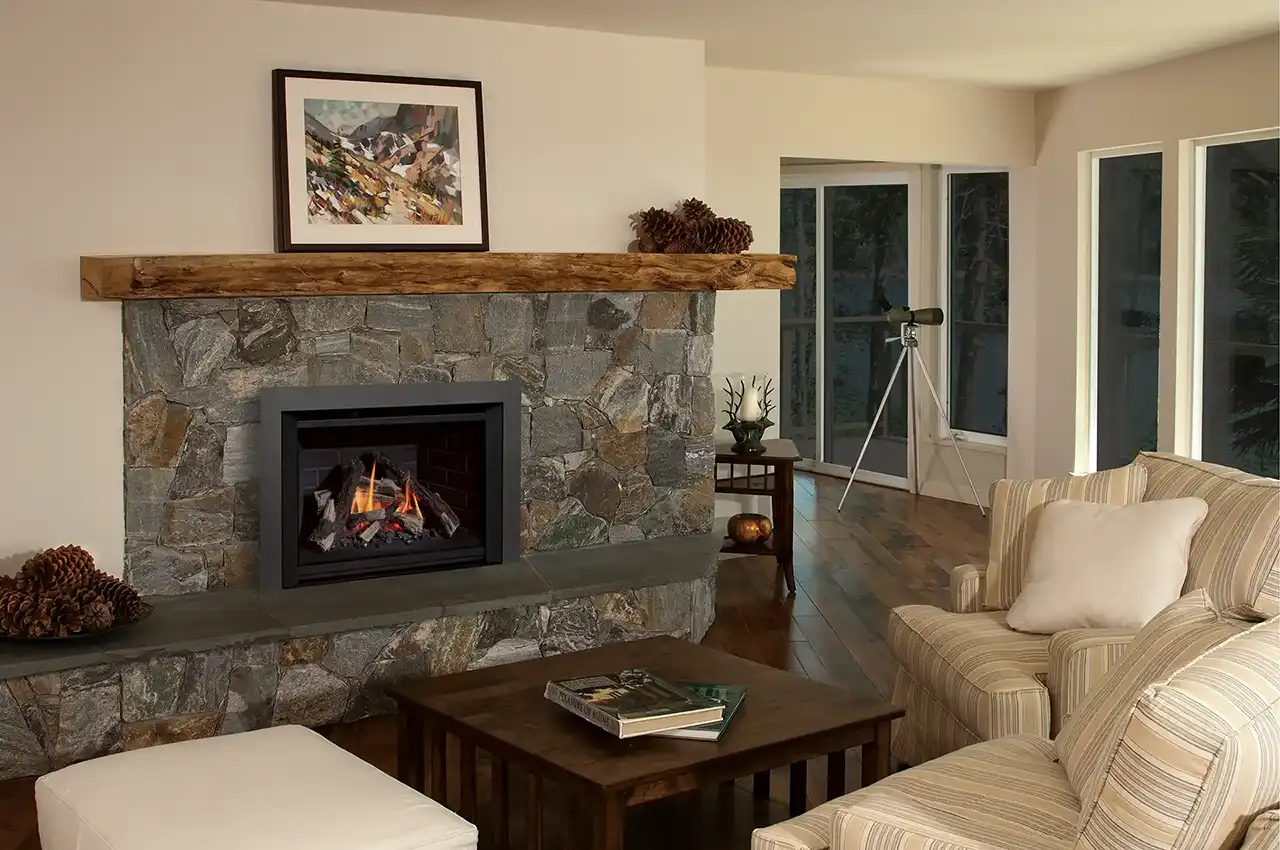

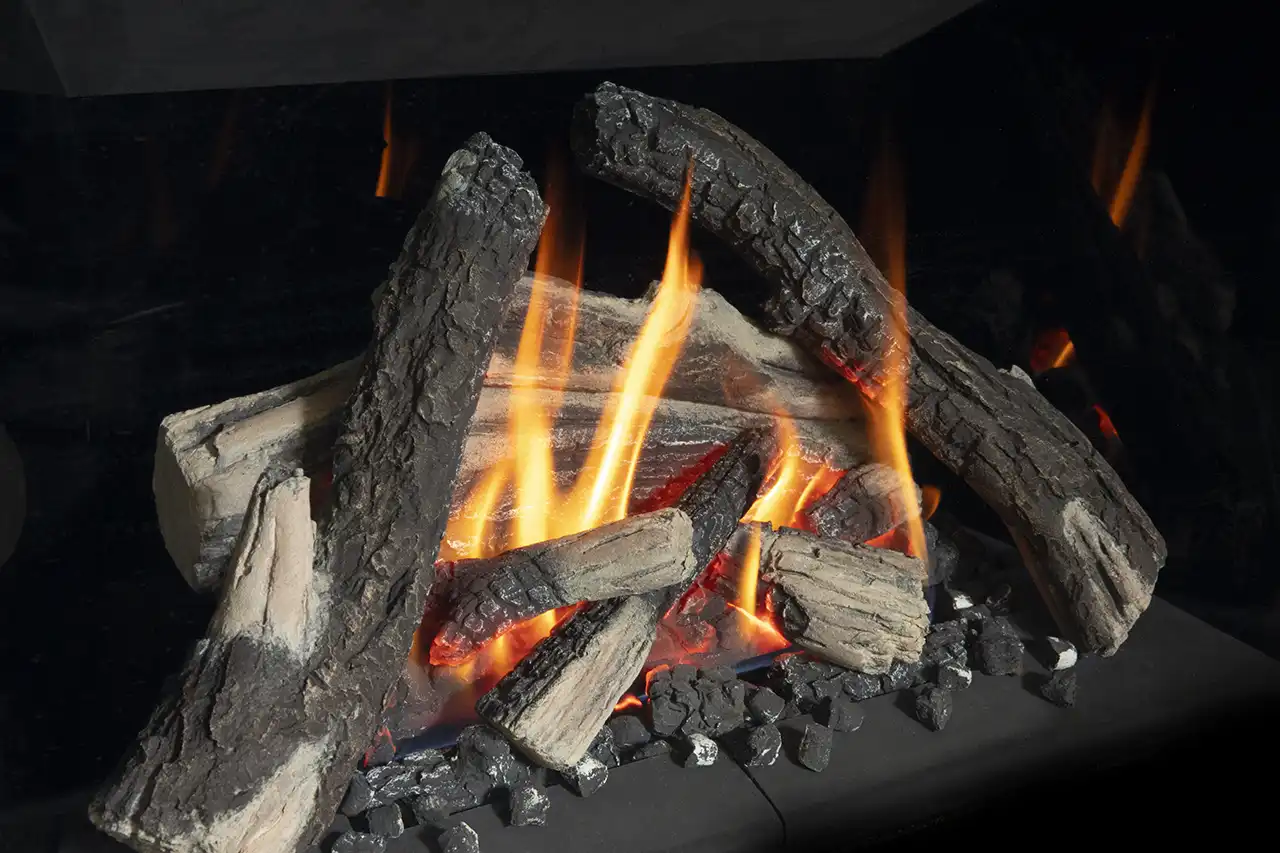

1000LSK I Traditional Logs

1101DWK I Pebble Beach Driftwood

Liners

786LSL V3 1 Ledgestone

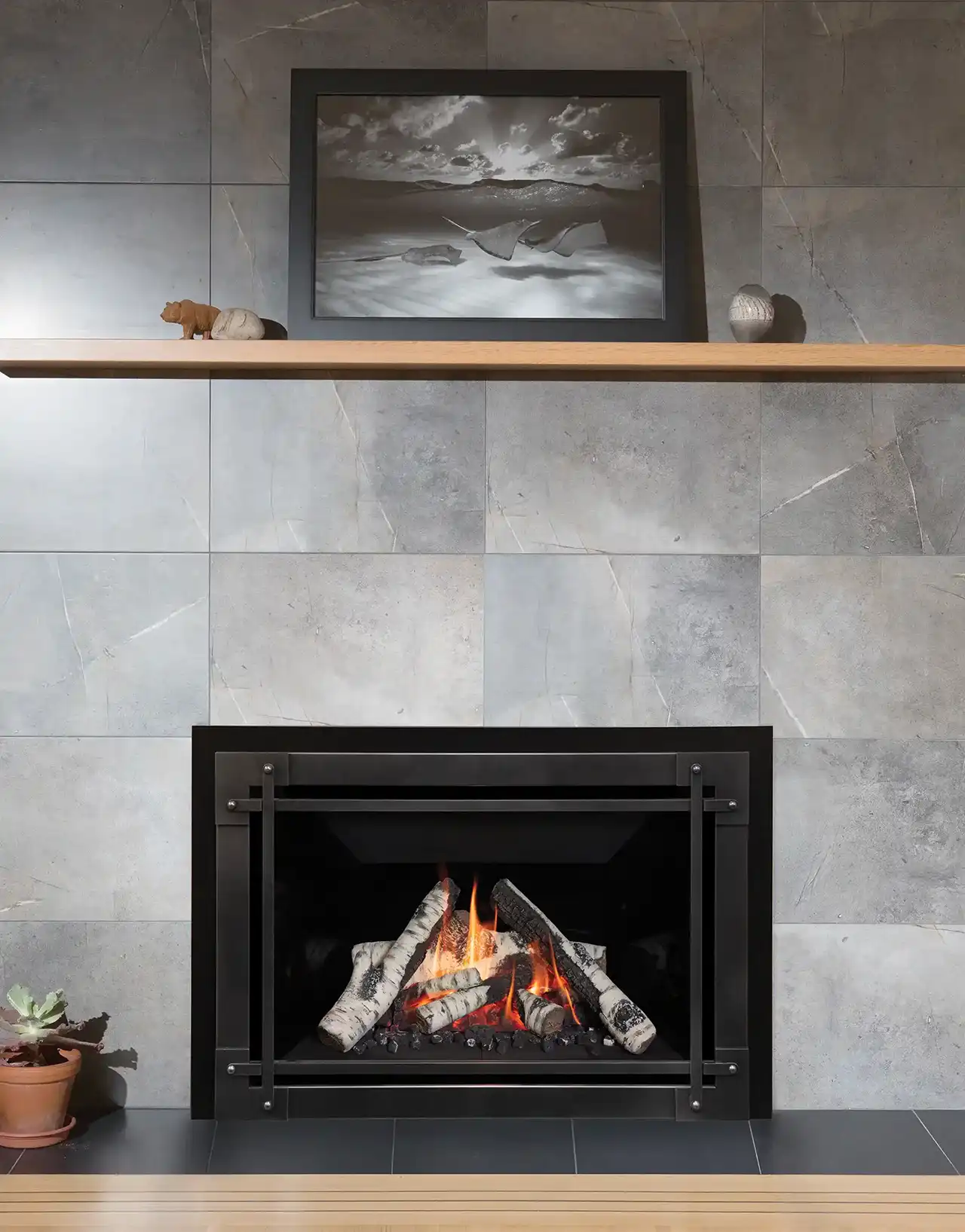

787RGL I Reflective Glass

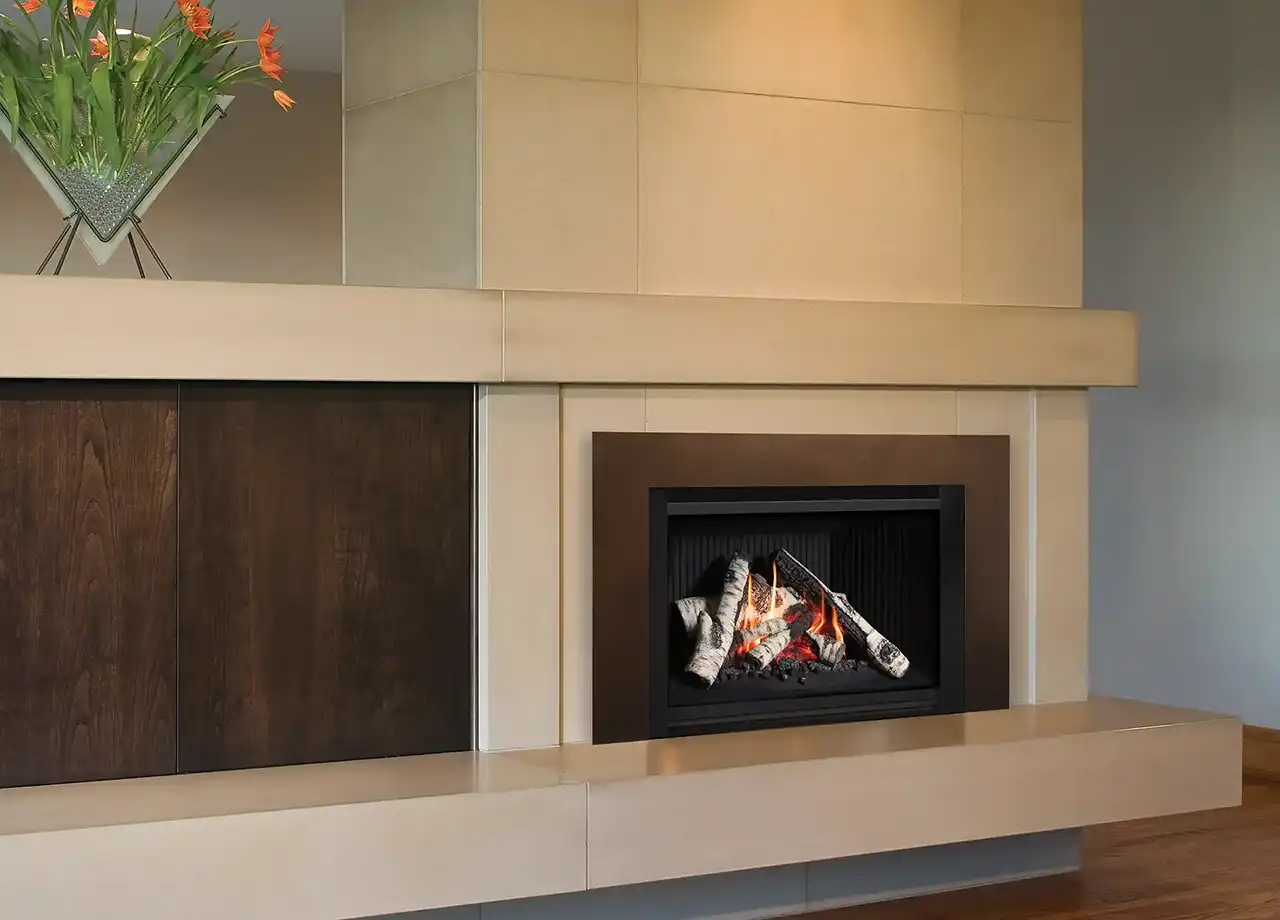

788FBL V2 1 Fluted Black

789VRL V2 1 Red Brick

Insert Compatible Fronts

Backing Plates

559CLT Co-Linear Terminal
559SFK Square Flashing Kit (for use with 559CLT)
720SWK-M2 Sidewall Co-Linear Terminal (for use with 780M engines)
785RGP Reflective Glass Panel
793RTB Riser Kit – Black
793RTV Riser Kit – Vintage Iron
795CFK V2 Circulating Fan Kit
796ALP Adjustable Levelling Platform
1265WSK Wall Switch Kit
GV60PAK Power Adapter Kit (for use with ValorStat Max Remote)
