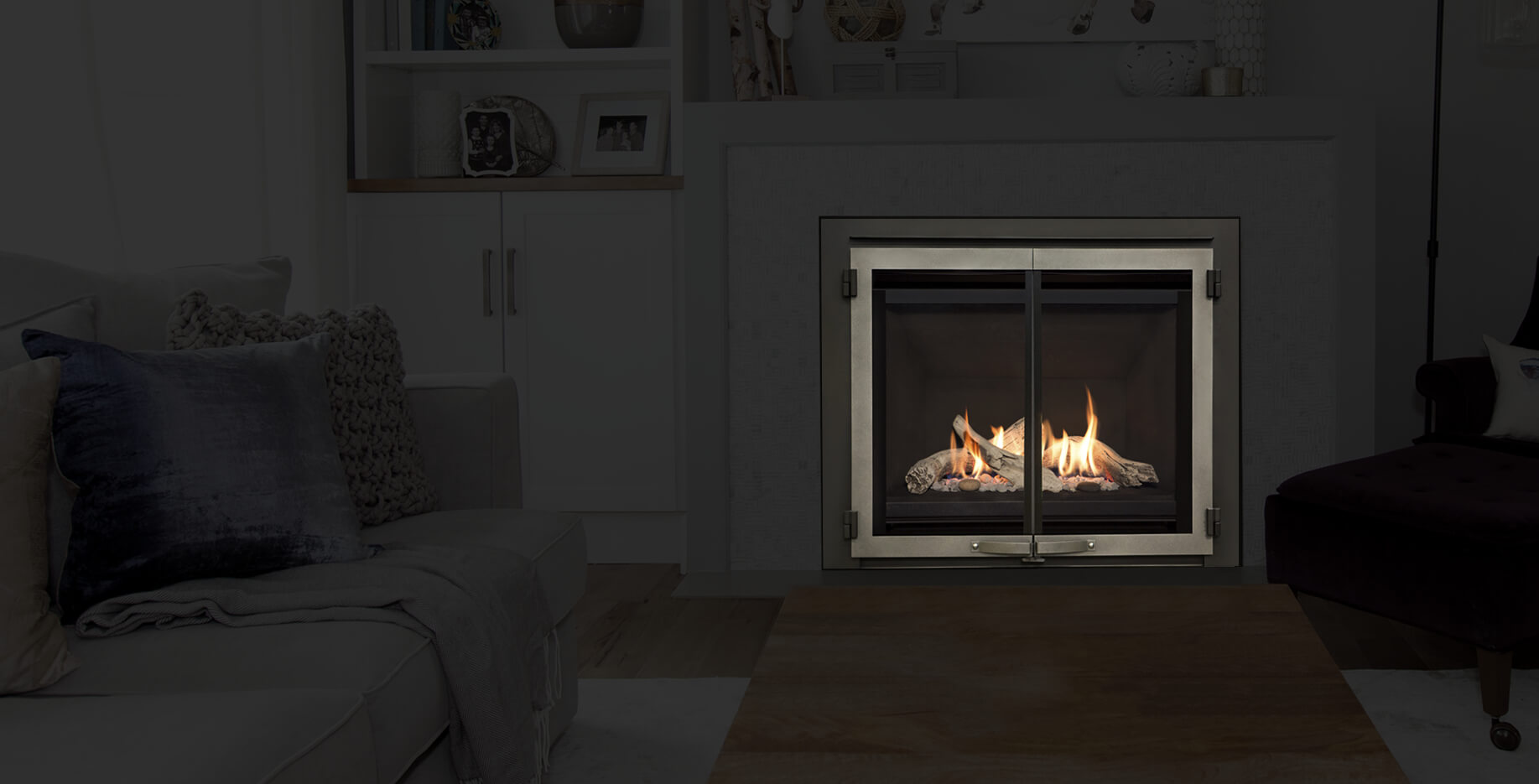

H5 Gas Fireplace
H5 Gas Fireplace
The H5 is a diverse fireplace that blends distinct, high-quality materials with the latest in radiant and convective heat technology. Equipped with four unique fuel bed options including murano or decorative glass, traditional log or pebble beach driftwood, the H5 caters to those seeking both traditional and contemporary flame appeal.
The H5 combines compact design with a generous viewing area, highlighting the ambient flames and glowing embers within.
Fuel Beds
1101DWK I Driftwood
1103DGM I Murano Glass
1104DGS I Decorative Glass
1150 | Traditional Logs
Liners
1110VRL I Red Brick
1115LSL I Ledgestone
1125FBL I Fluted Black
1160FBL I Plain Black
1170RGL I Reflective Glass
1175HBL I Herringbone
Fronts
1″ Fixed Frame – Black (26 ⅝”h x 35 ¾”w)
3 ¼” 3-Sided Front – Black (30 ⅜”h x 40 ¼”w)
4″ 4-Sided Front – Black (32 ½”h x 41 ½”w)
4″ 4-Sided Front – Brushed Nickel (32 ½”h x 41 ½”w)
4″ 4-Sided Front – Painted Nickel (32 ½”h x 41 ½”w)
4″ 4-Sided Front – Bronze (32 ½”h x 41 ½”w)
Edgemont Hammered Front – Copper
Edgemont Hammered Front – Oiled Bronze
Edgemont Hammered Front – Vintage Iron
H5 with Valor HeatShift™
Planning and Installation
HeatShift reduces wall temperatures above the fireplace.
| Model | Max Input | Min Input | Max Output | Energuide |
|---|---|---|---|---|
| 1100 | 28,000 | 13,000 | 20,720 | 70.00% |
| 1150 | 30,000 | 16,000 | 22,857 | 70.95% |
| Gas Type | Natural Gas (NG) or Propane (LPG) |
| Remote Control | Quick Guide | Manual |
| Viewing Area | 29 ⅞” w x 19 ¼” h = 575″² |
| Framing & Venting | Refer to Owner’s Manual. |
| Wall Control | RBWSK |
| Additional Features | No power no problem & safety screen. |
| ValorStat Max | ValorStat Max Remote Manual and Quick Guide | |
| 1100 Specifications | 1100J Venting only | |
| 1150 Specifications | 1150J Venting only | |
| Specifications | Framing, dimensions and clearances |
| 658DVK2 | Direct Vent Sidewall Terminal & Wall Thimble |
| 658NSFK | New Siding Flashing Kit |
| 658TG | Terminal Guard |
| 1105RGL | Reflective Glass Panel (for use with 1125FBL/1160PBL) |
| 1156CLA | Co-linear Adapter Kit |
| 1170RGL | Reflective Glass Liner installation manual |
| 1195CFK | Circulating Fan Kit |
| 1270RBK | Remote Blower Kit |
| 1506DRK | Decorative Rock Kit |
| DVA5BV | Direct Vent Adapter to 5″ B-Vent |
| GV60CKO | Outdoor Conversion Kit |
| GV60PAK | Power Adapter Kit |
