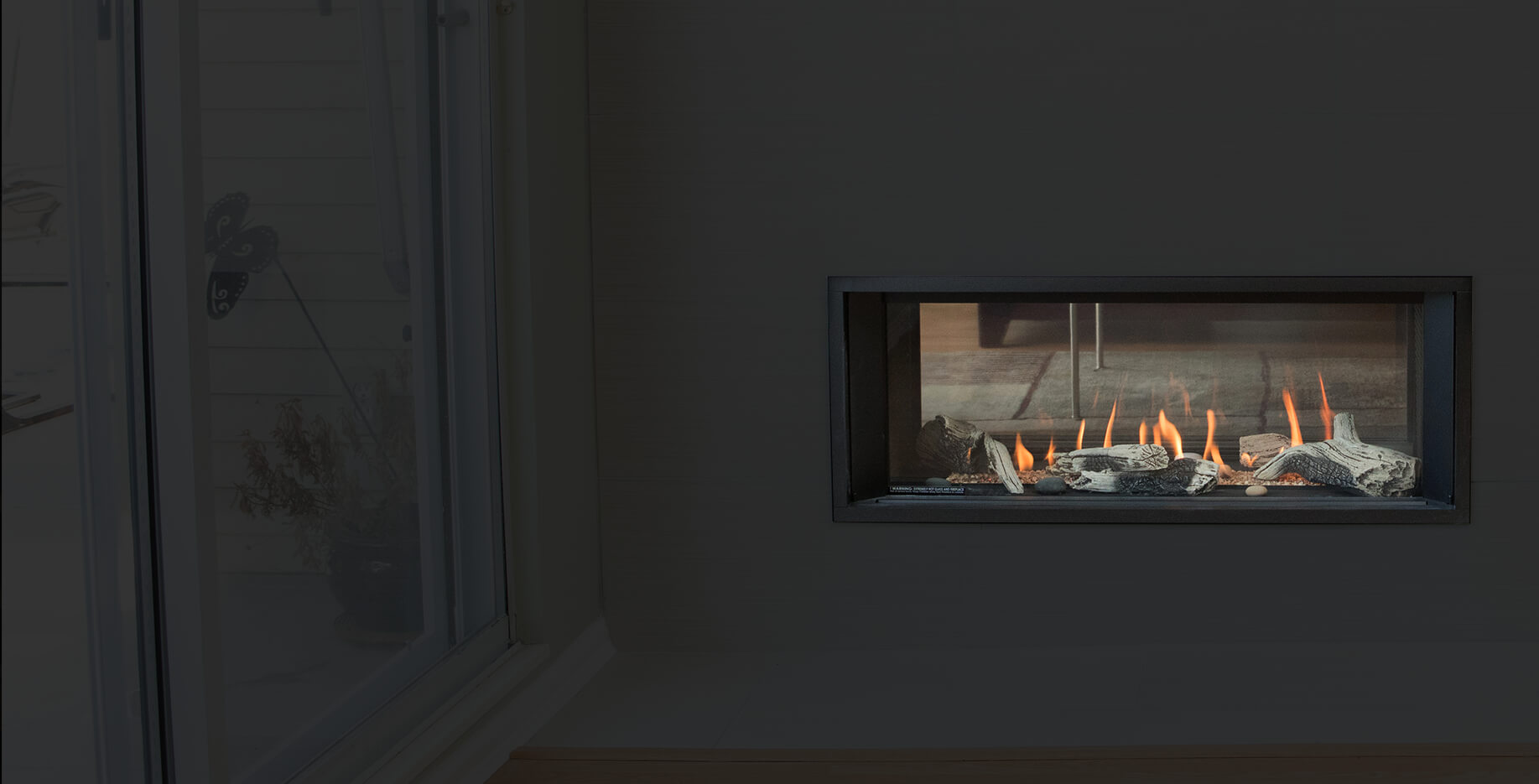

L1 See-Thru Gas Fireplace
L1 See-Thru Gas Fireplace
A seamless transition between architectural spaces, the L1 See-Thru boasts the same widescreen proportions as the highly successful L1. Connect living spaces through visual appeal and practical Valor warmth, and provide efficient zone heating in two separate spaces.
The See-Thru also supports the Valor HeatShift System™, which is highly recommended for installations where surrounding structural areas must remain at cooler temperatures.
Fuel Beds
1500BLK I Birch Logs
1500DGM I Murano Glass
1500SWK I Splitwood Logs
2100DWK I Driftwood
1514RSS I Rock & Shale
Liners
1615FBL I Fluted Black
1625RGL I Reflective Glass
Trims (requires 2)
1″ Clean Install Kit (requires Valor HeatShift™)
5 ¼” Trim – Black
1″ Adjustable Finishing Trim – Black
L2 with Valor HeatShift™
| Model | Max Input | Min Input | Max Output | Energuide |
|---|---|---|---|---|
| 1600KN | 30,000 | 18,000 | 22,116 | 69.00% |
| 1600KP | 26,000 | 18,500 | 19,198 | 69.00% |
| Gas Type | Natural Gas (NG) or Propane (LPG) |
| Valor 10 Remote | Quick Guide | Manual | Mobile App |
| Viewing Area | 40″ w x 14 ½” h = 580″² |
| Framing & Venting | Refer to Owner’s Manual. |
| Wall Control | RBWSK |
| Additional Features | No power no problem & safety screen. |
| Valor 10 Remote | Valor 10 Remote Manual and Quick Guide | |
| Valor 10 Mobile App | Valor 10 WiFi Control & Upgrade Instructions | |
| Specifications | Framing, dimensions and clearances |
| 658DVK2 | Direct Vent Sidewall Terminal & Wall Thimble |
| 1270RBK | Remote Blower Kit |
| 1506DRK | Decorative Rock Kit |
| GV60CKO | Outdoor Conversion Kit |
| GV60PAK | Power Adapter Kit |
| GV60VM | GV60 V-Module Kit |
| GV60WiFi | GV60 WiFi Module Kit |
