Portrait Series Gas Insert
Portrait Series Gas Insert
The Valor Portrait Series offers a diverse collection of adaptive fireplace fronts complementing both traditional and contemporary room settings.
Hand-crafted castings, high-quality metals and artisan patina finishes are just a few of the many features that define the Portrait Series collection. Fire bed options including traditional Log, Coal, Rocks, and new Driftwood radiate steady warmth that satisfy any home comfort needs.
Fuel Beds
530CSK I Coals
530DWK I Driftwood
530LSK I Logs
530RSK I Rocks
Liners
Reflective Glass
Fluted Black
Red Brick
Red Brick
Insert Compatible Fronts
536CXB
President™ Zero Clearance Front
536CXBI
President™ Insert Front (must add 582/583/3336 option)
539AFBv2

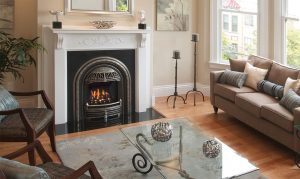

Windsor Arch Zero Clearance Front - Black (with backing plate)
539AFPv2
Windsor Arch Zero Clearance Front - Chrome (with backing plate)
541BPC
Bolero Front
545CFV
Clearview Insert Front
546LFB

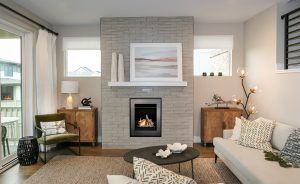

Ledgeview Insert Front - Black
546LFN
Ledgeview Insert Front - Brushed Nickel
546LFPW
Ledgeview Insert Front - Pewter
546LFZ
Ledgeview Insert Front - Bronze
549AFBv2
Windsor Arch Insert Front - Black (no backing plate)
549AFPv2
Windsor Arch Insert Front - Chrome (no backing plate)
550CPAv2
Classic Arch Front - Brushed Nickel
563SCB

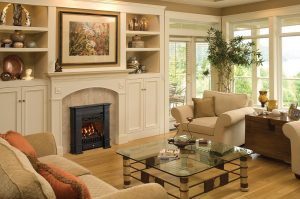

Senator Front
| Model | Max Input | Min Input | Max Output | Energuide |
|---|---|---|---|---|
| 530INI | 20,500 | 6,500 | 13,223 | 63.60% |
| 530IPI | 19,000 | 12,500 | 13,100 | 66.00% |
| Gas Type | Natural Gas (NG) or Propane (LPG) |
| Remote Control | Quick Guide | Manual |
| ValorStat Plus | ValorStat Plus Remote Manual and Quick Guide | |
| Specifications | 530 Insert | |
| 536CXBI | President Insert Front | |
| Cast Arches | Windsor & Classic Arch | |
| 541BPC | Bolero Front | |
| 545CFV | Clearview Insert Front | |
| 546LF | Ledgeview Insert Front |
| 530CVA2 | Co-Axial Flex Vent Adaptor |
| 545TFB | Traditional Cast Iron Fret – Black (545CFV only) |
| 549APB | Arch Backing Plate – Black (549AFB/Pv2 only) |
| 555CFK | Circulating Fan Kit |
| 556CLA | Co-Linear Adapter (insert applications only) |
| 559CLT | Co-Linear Terminal |
| 559SFK | Square Flashing Kit (for use with 559CLT) |
| 567FGP | Firebox Grille Panel |
| 580RGL | Reflective Glass Liner |
| 582CPB | Closure Plate – Black – 26″ w x 31″ h (for use with 536/541/563) |
| 583CPB | Closure Plate – Black – 30″ w x 33″ h (for use with 536/541/545/563) |
| 590FVK2 | Flex Vent Kit (for use with 530CVA2) |
| 658DVK2 | Direct Vent Sidewall Terminal & Wall Thimble |
| 658NSFK | New Siding Flashing Kit |
| 658TG | Terminal Guard |
| 720SWK | Co-Linear Side Wall Kit |
| 817VAK | Vent Adapter Kit |
| 845TG | Terminal Guard |
| 1265WSK | Wall Switch Kit |
| 3336CP | Closure Plate – Black (for use with 536CXBI) |
| DVA5BV | Direct Vent Adapter to 5″ B-Vent |
| GV60BRK | 1-Hour Shutdown Kit |
| GV60NTK | Non-Thermostat Handset |
| GV60PAK | Power Adapter Kit |
| RBWSK | Remote Battery & Wall Swith Kit |
