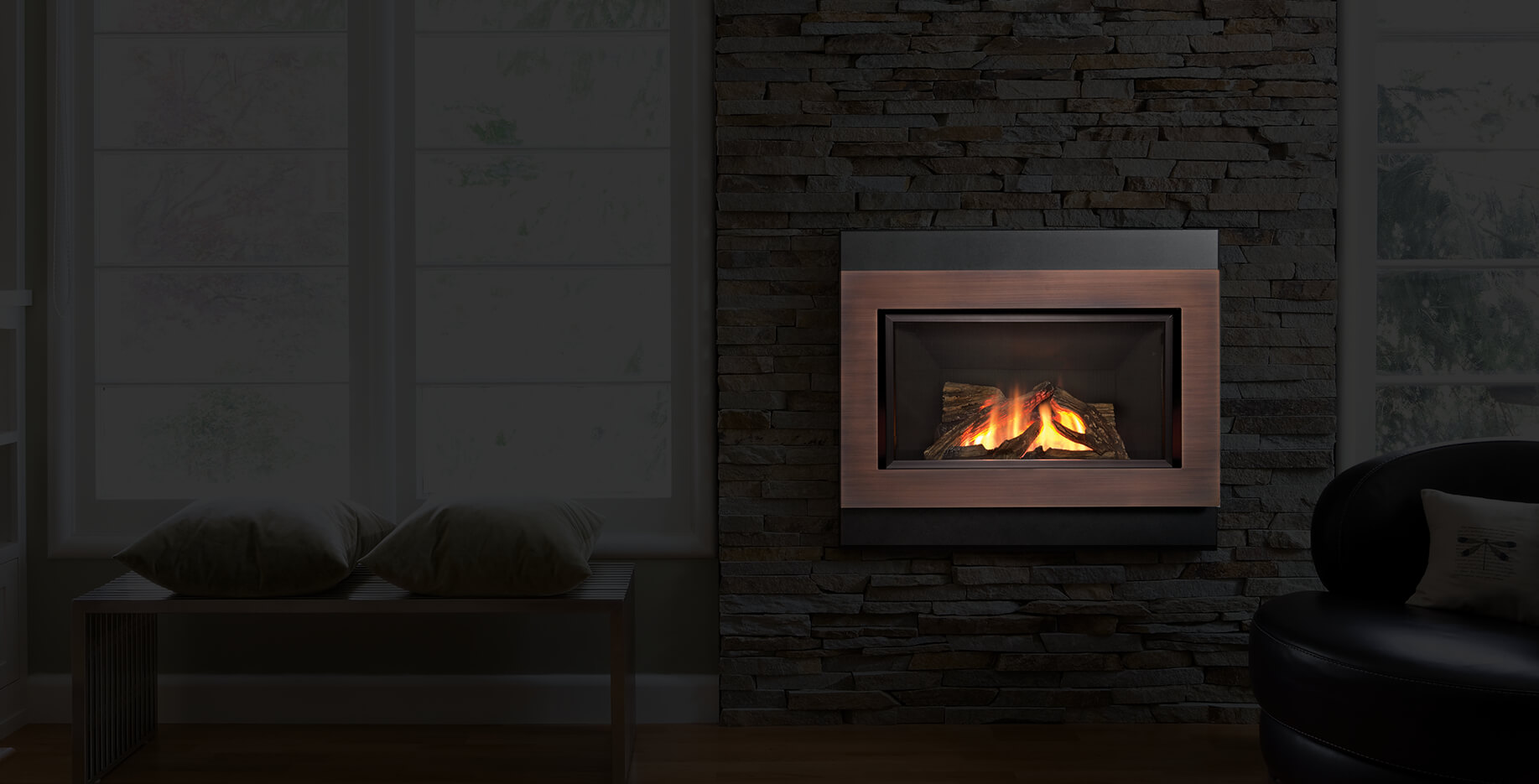

H4 Gas Fireplace
H4 Gas Fireplace
Designed as a four-sided version of the Horizon fireplace, the H4 Series eliminates the need for a traditional hearth in your living space. Elevated to your preferred height, the H4 nestles comfortably in any surrounding wall surfaces.
Customize for your desired application by choosing from two different backing plates in landscape or square, and four different inner bezel surrounds in copper, nickel painted, nickel plated or black.
Fuel Beds
534DWK I Driftwood
534LSK I Logs

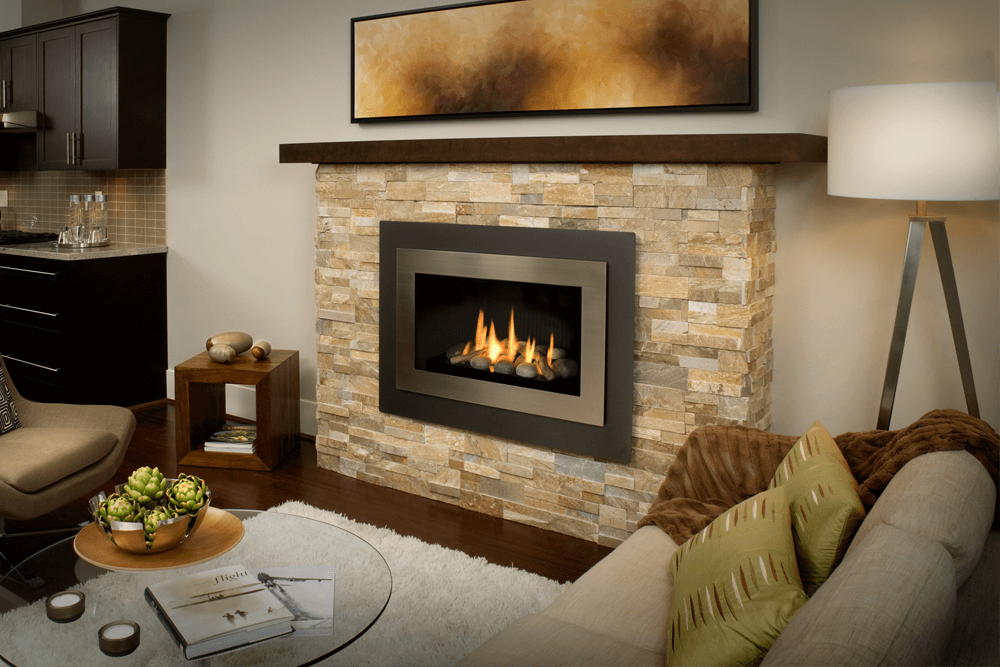

534RSK I Rocks
761DRK I Decorative Rock Kit
Liners
618RGL I Reflective Glass
620FBL I Fluted Black
621VRL I Red Brick
622LSL I Ledgestone
Outer Surrounds
Outer Landscape Surround – Black
Outer Landscape Surround – Vintage Iron
Outer Square Surround – Vintage Iron
Inner Surrounds
Inner Bezel Surround – Black
Inner Bezel Surround – Copper
Inner Bezel Surround – Powder Nickel
Inner Bezel Surround – Nickel Plated
| Model | Max Input | Min Input | Max Output | Energuide |
|---|---|---|---|---|
| 650JN | 24,000 | 6,500 | 17,506 | 71.30% |
| 650JP | 24,000 | 13,000 | 17,506 | 71.30% |
| Gas Type | Natural Gas (NG) or Propane (LPG) |
| Remote Control | Quick Guide | Manual |
| Viewing Area | 26 ½” w x 14 ¾” h = 391″² |
| Framing & Venting | Refer to Owner’s Manual. |
| Wall Control | 1265WSK |
| Additional Features | No power no problem & safety screen. |
| ValorStat Plus | ValorStat Plus Remote Manual and Quick Guide | |
| Specifications | Framing, dimensions and clearances |
| 556CLA | Co-Linear Adapter (insert applications only) |
| 559CLT | Co-Linear Terminal |
| 559SFK | Square Flashing Kit (for use with 559CLT) |
| 658DVK2 | Direct Vent Sidewall Terminal & Wall Thimble |
| 658NSFK | New Siding Flashing Kit |
| 658TG | Terminal Guard |
| 755CFK | Circulating Fan Kit |
| 761DRK | Decorative Rock Kit (addition to 534RSK) |
| 817VAK | Vent Adapter Kit |
| DVA5BV | Direct Vent Adapter to 5″ B-Vent |
| GV60BRK | 1-Hour Shutdown Kit |
| GV60CKO | Outdoor Conversion Kit |
| GV60NTK | Non-Thermostat Handset |
| GV60PAK | Power Adapter Kit |
| RBWSK | Remote Battery & Wall Swith Kit |
